Overcoming High-Rate Cell Thermal Management Bottlenecks: Arida Machinery Launches High-Precision Custom Copper-Nickel Clad Busbar Solutions

By integrating advanced materials science with precision mold technology, this solution provides global high-end Energy Storage System (ESS) and New Energy Vehicle (NEV) clients with one-stop delivery, from initial technical validation to high-volume stamping.

The Material Foundation: Molecular-Level Roll Bonding Technology

Traditional 99.99% pure nickel sheets offer excellent compatibility with resistance spot welding and laser welding. However, when carrying continuous high currents, their higher electrical resistance generates significant Joule heating. Conversely, while T2 copper boasts micro-ohm low internal resistance, its high reflectivity to near-infrared lasers (over 90%) and rapid heat dissipation make direct welding highly prone to spatter, weak joints, or even piercing the cell's safety valve.

The copper-nickel bimetallic material provided by Arida Machinery utilizes advanced molecular-level roll bonding technology.

• Physical Metallurgical Bonding: The interface between copper and nickel is not a simple electroplated coating. High-pressure rolling achieves dense bonding at the atomic level, ensuring the material will absolutely not delaminate or peel under extreme vibration and thermal expansion/contraction scenarios.

• Thermodynamic and Optical Balance: The copper base layer handles large current flows and efficient heat transfer, actively suppressing temperature rise during fast charging. Meanwhile, the pure nickel surface layer significantly increases the laser absorption rate, widening the welding process window. This allows for precise penetration control and the formation of a high-strength alloy weld pool.

Process Advancement: From Laser-Cut Prototypes to Million-Level Precision Stamping Molds

Faced with complex cell arrangements, Arida Machinery demonstrates strong engineering translation and supply chain management capabilities. We understand that modern battery assembly requires not only premium materials but absolutely reliable forming processes. For core thickness specifications like 0.2mm, we provide flexible and high-standard manufacturing pathways:

1. Agile Technical Validation: In the early R&D phase, our technical team supports high-precision laser-cut prototyping. This allows overseas clients to quickly complete initial BMS topology pack testing and electrical performance validation without incurring upfront mold costs.

2. High-Precision Progressive Stamping: Once the technical design is frozen and moves into the mass production phase, we fully transition to high-precision stamping molds. Compared to laser cutting, continuous stamping not only drastically reduces unit manufacturing costs but also achieves extremely strict, micron-level dimensional consistency at a million-level capacity.

Topology Design: Hardcore Delivery for Complex Arrays

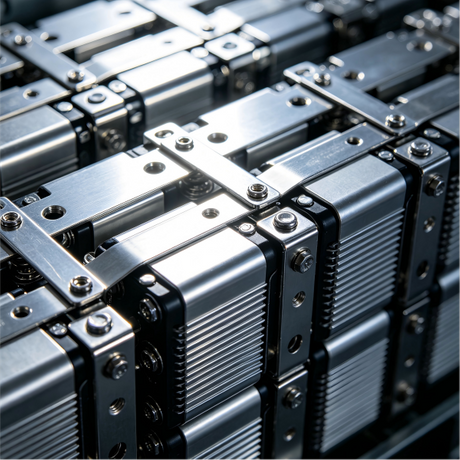

As shown in the recently disclosed engineering photos, the clad interconnects delivered by Arida Machinery have evolved far beyond basic strip formats into highly customized, array-style polygonal topologies.

• Stress Relief and Anti-Shift Design: The micro-slits and counterbores pre-fabricated on the formed parts effectively release the mechanical stress generated during the expansion and contraction of cells, protecting the solder joints from tearing.

• Micro-Level Burr Suppression: We enforce strict mold clearance management and cutting speed control. The edges of all stamped clad parts (especially at the Cu-Ni interface) are exceptionally smooth, completely eliminating the fatal risk of micro metal burrs piercing the cell's insulation film and causing internal short circuits.

Cross-Border Technology and Supply Chain Services

"As a bridge for export trade, our core value lies not just in providing parts based on a blueprint, but in exporting a complete set of manufacturing reliability," says Justin, Sales and Business Development Representative at Arida Machinery.

Leveraging the hardcore production capacity of the PINE manufacturing base, Arida Machinery bridges the gap in cross-border technical communication for international clients. From material selection and Design for Manufacturability (DFM) assessment to high-quality mass delivery, we provide global clients with a transparent, efficient, and cost-competitive supply chain service for new energy structural components.
